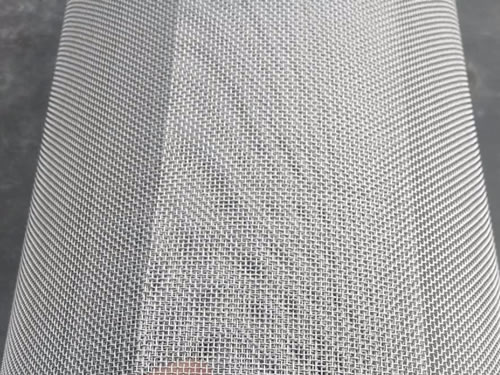

310S Stainless Steel Wire Mesh
310S stainless steel also called 0Cr25Ni20. 310S stainless steel(2520) due to high content of Ni and Cr it is with good oxidation resistance corrosion resistance acid and alkali resistance high temperature resistance. 310S stainless steel the highest temperature is 1200? the continuous utilization temperature is 1150?. 310S stainless steel suitable for making all kinds of exhaust pipe heat treatment furnace heat ex-changer incinerator and other steel which requires heat resistance high heat/high temperature contact parts.
Features of 904L Stainless Steel Wire Mesh
- High Temperature Resistance
- Oxidation Resistance
- Corrosion Resistance
Technical Details
- Mesh Count: 2-200
- Wire diameter:0.05mm-1.8mm
- Common Width:0.9m1m1.2m1.5m2m
- Common Length:10m25m30mspecial requirement can be customized.
- 310S stainless steel(2520)due to high content of Ni and Cr it is with good oxidation resistance corrosion resistance acid and alkali resistance high temperature resistance. The maximum service temperature is 1200?
Application of 310S Stainless Steel Wire Mesh
- Petroleum Industry
- Electronics Industry
- Chemical Industry
- Medicine Industry
- Textile Industry/li>
- Food processing Industry
- Nuclear Power Industry
- Military Industry
Specification of 310S Stainless Steel Wire Mesh
| MESH |
WIRE DIAMETER |
APERTURE/OPENING |
%OPEN AREA |
| INCH |
MM |
INCH |
MM
|
| 1x1 |
.080 |
2.03 |
.920 |
23.37 |
84.6 |
| 2X2 |
.063 |
1.60 |
.437 |
11.10 |
76.4 |
| 3X3 |
.054 |
1.37 |
.279 |
7.09 |
70.1 |
| 4X4 |
.063 |
1.60 |
.187 |
4.75 |
56.0 |
| 4X4 |
.047 |
1.19 |
.203 |
5.16 |
65.9 |
| 5X5 |
.041 |
1.04 |
.159 |
4.04 |
63.2 |
| 6X6 |
.035 |
.89 |
.132 |
3.35 |
62.7 |
| 8X8 |
.028 |
.71 |
.097 |
2.46 |
60.2 |
| 10X10 |
.025 |
.64 |
.075 |
1.91 |
56.3 |
| 10X10 |
.020 |
.51 |
.080 |
2.03 |
64.0 |
| 12X12 |
.023 |
.584 |
.060 |
1.52 |
51.8 |
| 12X12 |
.020 |
.508 |
.063 |
1.60 |
57.2 |
| 14X14 |
.023 |
.584 |
.048 |
1.22 |
45.2 |
| 14X14 |
.020 |
.508 |
.051 |
1.30 |
51.0 |
| 16X16 |
.018 |
.457 |
.0445 |
1.13 |
50.7 |
| 18X18 |
.017 |
.432 |
.0386 |
.98 |
48.3 |
| 20X20 |
.020 |
.508 |
.0300 |
.76 |
36.0 |
| 20X20 |
.016 |
.406 |
.0340 |
.86 |
46.2 |
| 24X24 |
.014 |
.356 |
.0277 |
.70 |
44.2 |
| 30X30 |
.013 |
.330 |
.0203 |
.52 |
37.1 |
| 30X30 |
.012 |
.305 |
.0213 |
.54 |
40.8 |
| 30X30 |
.012 |
.305 |
.0213 |
.54 |
40.8 |
| 30X30 |
.009 |
.229 |
.0243 |
.62 |
53.1 |
| 35X35 |
.011 |
.279 |
.0176 |
.45 |
37.9 |
| 40X40 |
.010 |
.254 |
.0150 |
.38 |
36.0 |
| 50X50 |
.009 |
.229 |
.0110 |
.28 |
30.3 |
| 50X50 |
.008 |
.203 |
.0120 |
.31 |
36.0 |
| 60X60 |
.0075 |
.191 |
.0092 |
.23 |
30.5 |
| 60X60 |
.007 |
.178 |
.0097 |
.25 |
33.9 |
| 70X70 |
.0065 |
.165 |
.0078 |
.20 |
29.8 |
| 80X80 |
.0065 |
.165 |
.0060 |
.15 |
23.0 |
| 80X80 |
.0055 |
.140 |
.0070 |
.18 |
31.4 |
| 90X90 |
.005 |
.127 |
.0061 |
.16 |
30.1 |
| 100X100 |
.0045 |
.114 |
.0055 |
.14 |
30.3 |
| 100X100 |
.004 |
.102 |
.0060 |
.15 |
36.0 |
| 100X100 |
.0035 |
.089 |
.0065 |
.17 |
42.3 |
| 100X100 |
.0035 |
.089 |
.0065 |
.17 |
42.3 |
| 110X110 |
.0040 |
.1016 |
.0051 |
.1295 |
30.7 |
| 120X120 |
.0037 |
.0940 |
.0064 |
.1168 |
30.7 |
| 150X150 |
.0026 |
.0660 |
.0041 |
.1041 |
37.4 |
| 160X160 |
.0025 |
.0635 |
.0038 |
.0965 |
36.4 |
| 180X180 |
.0023 |
.0584 |
.0033 |
.0838 |
34.7 |
| 200X200 |
.0021 |
.0533 |
.0029 |
.0737 |
33.6 |
| 250X250 |
.0016 |
.0406 |
.0024 |
.0610 |
36.0 |
| 270X270 |
.0016 |
.0406 |
.0021 |
.0533 |
32.2 |
| 300X300 |
.0051 |
.0381 |
.0018 |
.0457 |
29.7 |
| 325X325 |
.0014 |
.0356 |
.0017 |
.0432 |
30.0 |
| 400X400 |
.0010 |
.0254 |
.0015 |
.370 |
36.0 |
| 500X500 |
.0010 |
.0254 |
.0010 |
.0254 |
25.0 |
| 635X635 |
.0008 |
.0203 |
.0008 |
.0203 |
25.0 |
Note: Special size and specifications can be made according to customers requires.
Chemical Composition of 310S Stainless Steel Wire Mesh
|
C |
Si |
Mn |
P |
S |
Ni |
Cr |
| MIN |
- |
- |
- |
- |
- |
19.0 |
24.0 |
| MAX |
0.25 |
1.50 |
2.00 |
0.045 |
0.003 |
22.0 |
26.0 |
|
