Stainless Steel Hexagonal Mesh

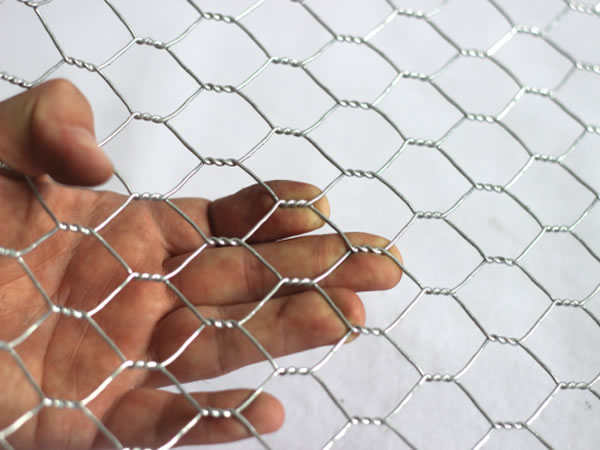

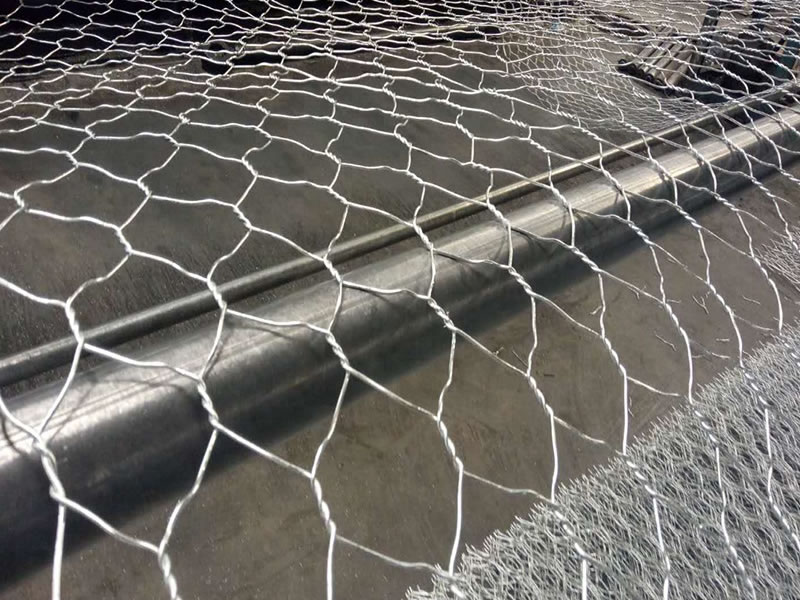

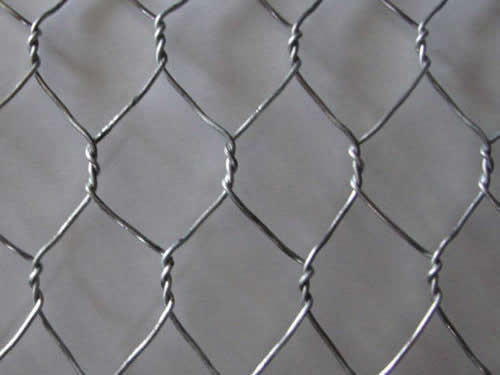

Stainless steel hexagonal wire netting, also called chicken mesh or poultry mesh, is made of low carbon Iron Wire, the mesh is firm in structure and has flat surface. It is extensively used in industrial and agricultural constructions as reinforcement and fence. It is also used as fence for poultry cage, fishing, garden and children playground.

Materials:The main materials of stainless steel hexagonal wire netting is stainless steel wire.

Weaving: normal twist and reverse twist

Features:Stainless steel hexagonal wire nettings offer flat surface, heat preservation, freeze prevention, firm structure, and good integrity. Meantime this kind of hexagonal mesh has excellent corrosion resistance, alkali and acid resistance.

Sizes:

We can produce hexagonal wire netting in size from 1/2" to 2"

In rolls 30m, 100' long

In width of 1', 1.25',1.5', 2',3' and so on.

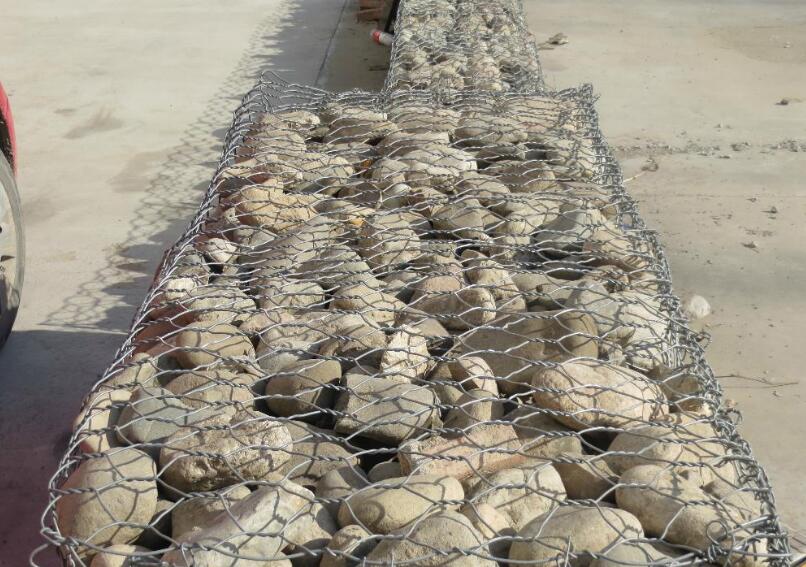

Application:Stainless steel hexagonal wire mesh with its good corrosion resistance and oxidation resistance, serves well as strengthening, protection and temperature keeping materials in the form of mesh container, stone cage, isolation wall, boiler cover or poultry fence in construction, chemical, breeding, garden and food processing industries, for example as reinforcement in cement concrete, as fencing mesh in feeding chicken, duck and animals, as protecting mesh for window and gardens.

Specification List of Hexagonal Wire Mesh
Specification in Metric Unit Specification in Inch Wire Diameter in BWG Technical Note
1.5cm 1/2" 22 Max. roll width:
2m,single or double edge
24
2cm 3/4" 20 Max. roll width: 2m,single, double edge,or reinforced
22
24
1.8cm 5/8" 21 Max. roll width: 4', single or double edge
23
25
2.5cm 1" 19 Max. roll width: 2m, straight or reverse twist
21
23
3cm 1.25" 19 Max. roll width: 2m, straight or reverse twist
21
4cm 1.5" 18 Max. roll width: 2m
20
22
5cm 2" 18 Max. roll width: 2m
20
22

Special specifications can be produced by the customer's requirements
