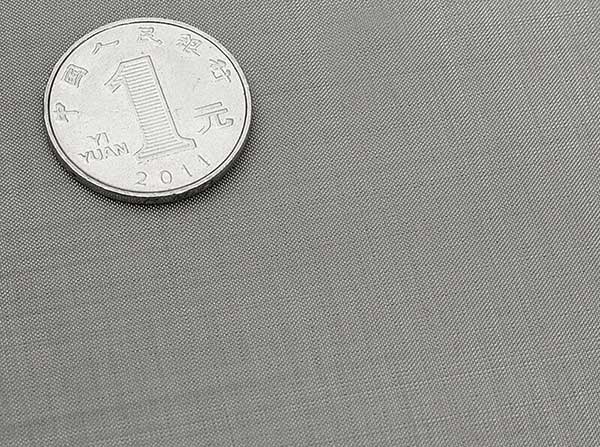

FeCrAl Wire Mesh
FeCrAl wire mesh is also called FeCrAl alloy wire mesh heating resistance alloy woven wire electro thermal alloy mesh. The raw material is woven into a continuous meshes. Except for the FeCrAl woven wire mesh there are FeCrAl expanded metal mesh and FeCrAl perforated mesh.
FeCrAl wire mesh has outstanding heating resistance oxidation resistance performance. It is mainly used in the industry electric furnace household appliances. It is an ideal material for heating and drying.
Features of FeCrAl Wire Mesh
- Heating resistance.
- Oxidation resistance.
- Sulfur resistance.
- Anti-carburizing.
- High surface load.
- Long lasting and durable.
- Low temperature coefficient of resistance.
Technical Details
- Material: 1Cr13AL4 1Cr12AL4 0Cr21AL6 0Cr23AL5 0Cr25AL5 0Cr21AL6Nb 0Cr27AL7Mo2
- Mesh Count: 2-200 mesh
- Finest wire: 0.06mm
- Weave: Plain weave twill weave
- Max working temperature:
- 1Cr13Al4 - 950°
- 1Cr21Al4 - 1100°
- 0Cr21Al6 - 1250°
- 0Cr23Al5 - 1250°
- 0Cr25Al5 - 1250°
- 0Cr21Al6Nb - 1350°
- 0Cr27Al7Mo2 - 1400°
Application of FeCrAl Wire Mesh
The FeCrAl wire mesh is mainly used as the drying and heating equipment in metallurgy colliery dyeing food factory hospital high density board factory and so on.
The FeCrAl wire mesh is an ideal heating resistance material in the industry electric furnace household appliances gas burners and infrared device.
Specification of FeCrAl Wire Mesh
| Mesh |
Wire Gauge |
Aperture (mm) |
Wire Diameter (mm) |
Roll Width (m) |
Weight (kg/m2) |
| 8 (T) |
21 |
2.375 |
0.8 |
1.0 |
2.5 |
| 8 (T) |
22 |
2.475 |
0.7 |
1.0 |
1.84 |
| 10 (T) |
23 |
1.94 |
0.6 |
0.6 |
1.69 |
| 12 (T) |
24 |
1.557 |
0.559 |
1.0 |
1.8 |
| 17 (T) |
24 |
0.94 |
0.55 |
0.6 |
2.57 |
| 20 (P) |
33 |
1.02 |
0.25 |
1.0 |
0.587 |
| 20 (P) |
32 |
1.0 |
0.27 |
1.0 |
0.685 |
| 20 (P) |
30 |
0.97 |
0.30 |
1.0 |
0.846 |
| 25 (P) |
30 |
0.71 |
0.30 |
1.0 |
1.125 |
| 30 (P) |
38 |
0.69 |
0.15 |
1.0 |
0.30 |
| 34 (P) |
33 |
0.49 |
0.25 |
1.0 |
1.06 |
| 40 (P) |
35 |
0.425 |
0.21 |
1.0 |
0.83 |
| 40 (T) |
35 |
0.425 |
0.21 |
1.0 |
0.83 |
| 44 (T) |
35 |
0.367 |
0.21 |
1.0 |
0.88 |
| 60 (T) |
38 |
0.273 |
0.15 |
1.0 |
0.66 |
| 80 (P) |
43 |
0.227 |
0.09 |
1.0 |
0.324 |
Note: Special size and specifications can be made according to customers requires. |
