Inconel Wire Mesh

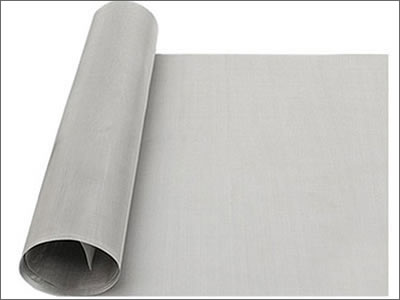

Inconel Wire Mesh is a type of woven wire mesh made of inconel wires. The inconel is the alloy of nickel chrome and iron. According to the chemical composition the inconel can be divided into inconel 600 inconel 601 inconel 625 inconel 718 and inconel X750.
Without magnetism inconel wire mesh can be used in a temperature range from below zero to 1093 degree. Inconel wire mesh has excellent corrosion resistance and its oxidation resistance performance is better than the nickel wire mesh. It is widely used in the petrochemical aerospace industry and other fields.
Features of Inconel Wire Mesh
- Non-magnetic.
- High temperature resistance.
- Good cold-formed function.
- Good weld ability.
- Excellent corrosion resistance.
- Oxidation resistance.
Technical Details
- Material: Inconel 600 (N06600) Inconel 601 (N06601) Inconel 625 (N06625) Inconel 718 (N07718) Inconel X-750 (N07750)
- Mesh Count: 2-200
- Weaving: Plain weave Twill weave
Application of Inconel Wire Mesh
Chemical industry
Petrochemical industry
Flue gas desulfurization
Pulp and paper
Environment protection industry
Specification of Inconel Wire Mesh
| Mesh (Wires/ in.) |
Wire diameter (in.) |
Width of opening (in.) |
Open area (%) |
| 4 × 4 |
0.1200 |
0.1300 |
27.00 |
| 4 × 4 |
0.0800 |
0.1700 |
46.20 |
| 4 × 4 |
0.0630 |
0.1870 |
56.00 |
| 5 × 5 |
0.0400 |
0.1600 |
64.00 |
| 6 × 6 |
0.0410 |
0.0126 |
57.20 |
| 8 ×8 |
0.0470 |
0.0780 |
38.90 |
| 8 × 8 |
0.0410 |
0.0840 |
45.20 |
| 8 × 8 |
0.0300 |
0.0950 |
57.80 |
| 8 × 8 |
0.0280 |
0.0970 |
60.20 |
| 10 × 10 |
0.02250 |
0.0750 |
56.30 |
| 10 × 10 |
0.0150 |
0.0850 |
72.30 |
| 12 × 12 |
0.0410 |
0.0420 |
25.40 |
| 12 × 12 |
0.0250 |
0.0580 |
48.40 |
| 16 × 16 |
0.0360 |
0.0275 |
19.40 |
| 16 × 16 |
0.0280 |
0.0350 |
30.50 |
| 16 × 16 |
0.0250 |
0.0380 |
36.00 |
| 16 × 16 |
0.0230 |
0.0400 |
39.90 |
| 16 × 16 |
0.0180 |
0.0450 |
50.70 |
| 18 × 18 |
0.0280 |
0.0280 |
24.70 |
| 20 × 20 |
0.0160 |
0.0340 |
46.20 |
| 22 × 22 |
0.0150 |
0.0310 |
45.00 |
| 24 × 24 |
0.0140 |
0.0280 |
44.20 |
| 24 × 24 |
0.0120 |
0.0300 |
50.80 |
| 28 × 28 |
0.0130 |
0.0230 |
40.40 |
| 30 × 30 |
0.0150 |
0.0180 |
30.10 |
| 30 × 30 |
0.0100 |
0.0233 |
48.90 |
| 35 × 35 |
0.0055 |
0.0236 |
68.10 |
| 40 × 40 |
0.0100 |
0.0150 |
36.00 |
| 50 × 50 |
0.0090 |
0.0110 |
30.20 |
| 60 × 60 |
0.0075 |
0.0092 |
30.50 |
| 80 × 80 |
0.0055 |
0.0070 |
31.40 |
| 100 × 100 |
0.0040 |
0.0060 |
36.00 |
| 100 × 100 |
0.0045 |
0.0055 |
30.20 |
| 120 × 120 |
0.0038 |
0.0046 |
30.70 |
| 120 × 120 |
0.0020 |
0.0063 |
57.80 |
| 200 × 200 |
0.0021 |
0.0029 |
33.60 |
| 200 × 200 |
0.0020 |
0.0030 |
36.00 |
Note: Special size and specifications can be made according to customers requires.
Chemical Composition of Inconel Wire Mesh
| Grade |
C |
Cr |
Cu |
Fe |
Mn |
Ni |
S |
Si |
| Inconel 600 |
0.15 |
14 - 17 |
0.5 |
6 - 10 |
1.0 |
72.0 |
0.015 |
0.5 |
| Grade |
C |
Cr |
Cu |
Fe |
Mn |
Ni |
S |
Si |
Al |
| Inconel 601 |
0.1 |
21 - 25 |
1.0 |
Rem |
1.0 |
58 - 63 |
0.015 |
0.5 |
1.0 - 1.7 |
| Grade |
C |
Cr |
Fe |
Mn |
Ni |
S |
Si |
Al |
Cb |
Mo |
P |
Ti |
| Inconel 625 |
0.1 |
20 - 23 |
5.0 |
0.5 |
Rem |
0.15 |
0.5 |
0.4 |
3.15 - 4.15 |
8 - 10 |
0.015 |
0.4 |
| Grade |
C |
Cr |
Cu |
Fe |
Mn |
Ni |
S |
Si |
Al |
Cb |
Mo |
P |
Ti |
B |
C |
Co |
| Inconel 718 |
0.08 |
17-21 |
0.3 |
Rem |
0.035 |
50 - 55 |
0.015 |
0.35 |
0.2 - 0.8 |
4.75- 5.50 |
2.8 - 3.3 |
0.015 |
0.65- 1.15 |
0.006 |
0.08 |
1.0 |
| Grade |
C |
Cr |
Cu |
Fe |
Mn |
Ni |
S |
Si |
Al |
Cb |
Ti |
| Inconel 750 |
0.08 |
14 –17 |
0.5 |
5 – 9 |
1 |
70 |
0.01 |
0.5 |
0.4 – 1 |
0.7 – 1.2 |
2.0 – 2.6 |
|
