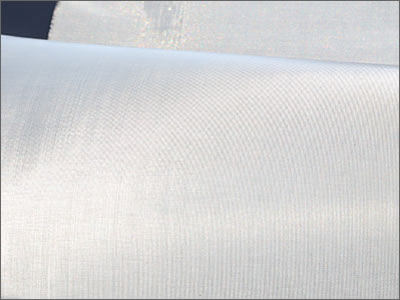

Pure Silver Wire Mesh
Pure Silver Wire Mesh is also called silver mesh silver wire mesh pure silver mesh pure silver woven wire mesh. It is with good electric conductivity thermal conductivity and ductility.
Silver mesh can be used as battery collector mesh electrodes and battery skeleton mesh
Also as filtration material in the high precision filtration equipment.
Features of Pure Silver Wire Mesh
- 1. Lightweight than titanium woven wire mesh and FeCrAl woven wire mesh.
- 2. Best electric conductivity.
- 3. High thermal conductivity and good heat transfer performance.
- 4. Good ductility.
Technical Details
- Material: 99.9% pure silver sheet.
- Technique: Expanded.
- Aperture size: 1mm × 2mm 1.5mm × 2mm 1.5mm × 3mm 2mm × 2.5mm 2mm × 3mm 2mm × 4mm 3mm × 6mm 4mm × 8mm etc.
- Thickness: 0.04mm - 5.0mm.
- Length and width customized.
Application of Pure Silver Wire Mesh
Pure Silver Wire Mesh is also called silver mesh silver wire mesh pure silver mesh pure silver woven wire mesh. It is with good electric conductivity thermal conductivity and ductility.Silver mesh can be used as battery collector mesh electrodes and battery skeleton mesh
Also as filtration material in the high precision filtration equipment.
Specification of Pure Silver Wire Mesh
| Mesh |
Wire Diameter |
Opening |
Opening |
| inch |
mm |
inch |
mm |
Area % |
| 20 mesh |
0.014 |
0.35 |
0.036 |
0.91 |
51.8 |
| 20 mesh |
0.009 |
0.23 |
0.041 |
1.04 |
67.2 |
| 24 mesh |
0.014 |
0.35 |
0.028 |
0.71 |
44.2 |
| 28 mesh |
0.01 |
0.25 |
0.026 |
0.66 |
51.8 |
| 30 mesh |
0.011 |
0.28 |
0.022 |
0.55 |
44.8 |
| 30 mesh |
0.0065 |
0.16 |
0.027 |
0.68 |
64.8 |
| 35 mesh |
0.012 |
0.3 |
0.017' |
0.43 |
33.8 |
| 35 mesh |
0.01 |
0.25 |
0.019 |
0.48 |
42.4 |
| 40 mesh |
0.01 |
0.25 |
0.015 |
0.38 |
36 |
| 40 mesh |
0.0095 |
0.24 |
0.016 |
0.4 |
38.4 |
| 50 mesh |
0.009 |
0.23 |
0.011 |
0.28 |
30.3 |
| 50 mesh |
0.008 |
0.20 |
0.012 |
0.3 |
36 |
| 60 mesh |
0.0075 |
0.19 |
0.009 |
0.22 |
30.5 |
| 60 mesh |
0.0059 |
0.15 |
0.011 |
0.28 |
40.2 |
Note: Special size and specifications can be made according to customers requires.
Chemical Composition of Pure Silver Wire Mesh
| Ag |
Cu |
P |
| 99.95% |
0.05% |
0.002% |
|
