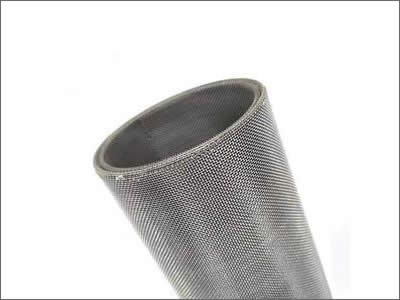

Tantalum Wire Mesh
Tantalum, symbol: Ta, pure tantalum with blue color, density: 16.68 g/cm3, melting point: 2996 ℃, mohs hardness: 6.5. Tantalum is a rare high melting point metal, has a very high corrosion resistance, no damage to human body, whether in the cold and hot conditions, the hydrochloric acid, nitric acid and aqua regia "not reaction, in higher than 150 ℃ concentrated sulfuric acid reaction.
Tantalum network, according to the production, process is divided into: 1, tantalum wire woven wire mesh. 2, tantalum plate stretch mesh.
Application: tantalum net filter is used in strong acid alkali environment, under the environment of high temperature filtration, traumatic repair of human muscles in medical electronic instruments in the electrode.
1、Tantalum Wire Braid：Made of pure tantalum in warp/weft woven, mesh for the square hole and rectangular hole.
Mesh：0.5Head---80Head.Net wide：10 mm ---1000 mm.
2、Tantalum Plate Stretch Mesh：Composed of tantalum plate by the mechanical stamping tensile machine, mesh for diamond, triangle, approximate hexagon.
Tantalum plate stretch mesh specifications：
Mesh：0.3X0.6mm，0.6X1.2mm， 1X2mm，1.5X2mm，1.5X3mm，2X3mm，2X4mm，3X6mm，4X8mm，5X10mm，6X12mmetc..
Network thick：0.04 mm ---3mm.
Net wide：5 mm----1000 mm.
|
