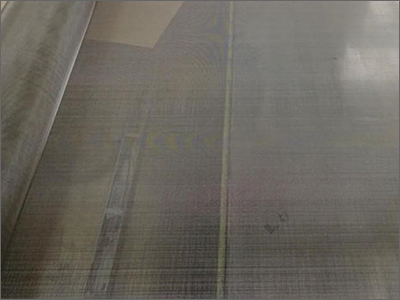

Titanium Wire Mesh
Titanium Wire Mesh is with low density and high specific strength.Titanium wire mesh is with outstanding corrosion resistance. In the corrosion environment the surface of high purity titanium mesh will form an oxidation film layer to protect wire mesh from being corroded the layer is compact and inert which has strong resistance to corrosion.
Titanium wire mesh has excellent corrosion resistant performance in below environment: Seawater wet chlorine chlorite and hypochlorite solution nitric acid chromic acid metal chlorides and organic salts etc.
Features of Titanium Wire Mesh
- Low density and high tensile strength.
- Excellent Corrosion resistance.
- High temperature resistance.
- Outstanding filtration performance.
- Good thermal property.
- Acid and alkali resistance.
- Nontoxic.
Technical Details
- Material: TA1 TA2 GR2 GR3 R50250 Titanium alloy etc. Black pure titanium wire Ti ≥ 99.6% (Applies to ships water filtration and other industries) Bright pure titanium wire (For production of electrodes battery collector net fine chemical filtration) Medical titanium wire (Applies to make medical apparatus and instruments)
- Hole Shape: square
- Mesh Count: 2-100
- Weaving: Plain weave twill weave.
- Width: 5mm-2000mm
Application of Titanium Wire Mesh
Titanium Wire Mesh can be used in shipbuilding war industry manufacturing chemical filter mechanical filter desalination filter high temperature vacuum equipment medicine filtration industries etc.
Specification of Titanium Wire Mesh
| Mesh (Wires/ in.) |
Wire diameter (in.) |
Width of opening (in.) |
Open area (%) |
| 4 × 4 |
0.0320 |
0.2180 |
76.00 |
| 4 × 4 |
0.0350 |
0.2150 |
74.00 |
| 6 × 6 |
0.0320 |
0.1350 |
65.60 |
| 7 × 7 |
0.0250 |
0.1180 |
68.20 |
| 8 × 8 |
0.0320 |
0.0930 |
55.40 |
| 9 × 9 |
0.0320 |
0.0790 |
50.60 |
| 10 × 10 |
0.0350 |
0.0650 |
42.30 |
| 10 × 10 |
0.0300 |
0.0700 |
49.00 |
| 10 × 10 |
0.0250 |
0.0750 |
56.30 |
| 12 × 12 |
0.0110 |
0.0723 |
75.30 |
| 14 × 14 |
0.0160 |
0.0550 |
60.20 |
| 16 × 16 |
0.0060 |
0.0565 |
81.70 |
| 18 × 18 |
0.0100 |
0.0460 |
67.40 |
| 18 × 18 |
0.0110 |
0.0445 |
64.40 |
| 18 × 18 |
0.0160 |
0.0400 |
50.8 |
| 20 × 20 |
0.0030 |
0.0470 |
88.40 |
| 20 × 20 |
0.0200 |
0.0300 |
36.00 |
| 20 × 20 TW |
0.0160 |
0.0340 |
46.20 |
| 24 × 24 |
0.0100 |
0.0320 |
57.90 |
| 24 × 24 |
0.0118 |
0.0299 |
51.40 |
| 26 × 26 |
0.0100 |
0.0290 |
54.90 |
| 30 × 30 |
0.0100 |
0.0233 |
49.00 |
| 32 × 32 |
0.0100 |
0.0210 |
46.50 |
| 35 × 35 |
0.0080 |
0.0206 |
51.80 |
| 40 × 40 |
0.0050 |
0.0200 |
64.00 |
| 40 × 40 |
0.0100 |
0.0150 |
36.00 |
| 50 × 50 |
0.0090 |
0.0110 |
30.30 |
| 50 × 50 TW |
0.0040 |
0.0160 |
64.00 |
| 60 × 60 TW |
0.0090 |
0.0077 |
21.30 |
| 90 × 90 |
0.0040 |
0.0071 |
41.00 |
| 100 × 100 |
0.0020 |
0.0080 |
64.00 |
| 120 × 120 TW |
0.0040 |
0.0043 |
27.00 |
| 150 × 150 TW |
0.0027 |
0.0040 |
35.50 |
Note: Special size and specifications can be made according to customers requires. |
